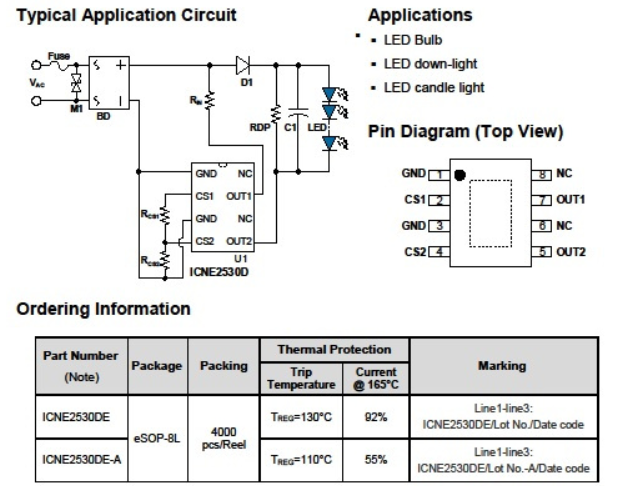

ICNE2530D Phase-Cut Dimmable HV Constant Current LED Driver
ICNE2530D is a high voltage linear constant current LED driver for phase–cut dimmable application, which integrates 500V high voltage MOS. The phase-cut dimmer holding current and the LED driving cur...
ICNE2530D is a high voltage linear constant current LED driver for phase–cut dimmable application, which integrates 500V high voltage MOS. The phase-cut dimmer holding current and the LED driving current can be set through the external resistors between 5mA and 100mA, the current precision can reach ±3%. ICNE2530D built-in negative temperature compensation function, help to improve the source regulation of the linear power supply system. The built-in negative temperature compensation function can effectively prevent damage to the system caused by sudden temperature changes. ICNE2530D system has simple peripherals, flexible application, high reliability, small volume, and low system BOM cost. It is suitable for all kinds of LED lamps.
Phase-cut dimmable constant current
control technology
Programmable output current
13% LED current accuracy
Temperature compensation improves
the source regulation
NO EMI issue
eSOP-8L package available
| 产品型号 | 驱动类型 | 输入电压 | 输出电流 | 封装方式 | 简单描述 |
| IML8673NL-TR | AC-DC | 110V/220V | 180mA | DFN2*2mm-6L | 高压性线 |
| IML8674LL-TR | AC-DC | 110V/220V | 180mA | DFN3*3mm-10L | 高压性线 |
| IML8676CL-TR | AC-DC | 110V/220V | 180mA | DFN3*3mm-8L | 高压性线 |
| IML8684BP-ADJ-TR | AC-DC | 110V/220V | 150mA | SOT-89 | 高压性线 |
| IML8684NL-ADJ-TR | AC-DC | 110V/220V | 150mA | DFN2*2mm-6L | 高压性线 |
| IML8685AE-TR | Active | 110V/220V | 75mA | TSOT23-3L | 高压性线 |
| IML8686AK-TR | AC-DC | 110V/220V | 250mA | SOT-223 | 高压性线 |
| IML8686AP-TR | AC-DC | 110V/220V | 150mA | SOP89-3 | 高压性线 |
| IML8686APA-TR | AC-DC | 110V/220V | 160mA | SOP89-3 | 高压性线 |
| IML8686APB-TR | AC-DC | 110V/220V | 110mA | SOP89-3 | 高压性线 |
| IML8690NL-TR | AC-DC | 110V/220V | 30W | DFN2*2mm-6L | 高压性线 |
| IML8693NE-TR | AC-DC | 110V/220V | 30W | TSOT23-6L | 高压性线 |
| IML8691CL-TR | Dimming | 110V/220V | / | DFN3*3mm-8L | PWM调光 |
| IML8692CFA-TR | AC-DC | 110V/220V | 25W | SOP-8L | 高压性线 可控硅调光 |
| IML3160AK | MOS | 600V | 1.5A | SOT-223 | 功率MOS管 |
| AMC7140 | DC-DC | 5-80V | 700mA | TO-252-5L | 线性降压 |
| ICL1701 | DC-DC | 5-75V | 1.5A | TO252-5L | 线性降压 |
| ICL1702 | DC-DC | 5-40V | 700mA | ESop-8/TO252-5L | 线性降压 |
| ICL9201 | 40V | 50mA | SOT-23 | 去频闪IC | |
| ICL1101 | AC-DC | 110V/220V | 7/14/21/28mA | 70*70UM2 | 高压性线 |
| ICL1102 | AC-DC | 110V/220V | 100mA | SOT89/ESOP8/TO252 | 550V高压性线恒流IC |
| ICL1103 | AC-DC | 110V/220V | 60mA | SOT89/ESOP8/HSOP-7 | 550V高压性线恒流IC |
| ICL1104 | AC-DC | 110V/220V | 100mA | SOT89/ESOP8/TO252 | 650V高压性线恒流IC |
| ICL1202 | AC-DC | 110V/220V | 100mA | eSOP-8 | 智能调光线性恒流IC |
| ICL1402/ICL1403 | AC-DC | 110V/220V | 100mA*2 | eSOP-8 | 双通道高压性线恒流IC |
| ICNE2521DE/A/B | AC-DC | 110V/220V | 100mA | eSOP-8 | 高压性线 |
| ICNE2521DS/A/B | AC-DC | 110V/220V | 100mA | SOT-89-3 | 高压性线 |
| ICNE2521DT/A/B | AC-DC | 110V/220V | 100mA | TO-252-3L | 高压性线 |
| ICNE2530DE | AC-DC | 110V/220V | 100mA*2 | eSOP-8 | 双通道高压性线恒流IC |
| ICNE2531 | AC-DC | 110V/220V | 100mA | eSOP-8 | 可控硅调光高压性线 |
| ICL3101 | AC-DC | 85V-265V | 150-220mA | SOT-33-4L/SOP-7L | 非隔离降压恒流去VCC |
| ICL3102 | AC-DC | 85V-265V | 220-600mA | SOP-7L/DIP-7L | 非隔离降压恒流去VCC |
| ICL9101AP | 开关调光 | 85V-265V | 300mA | SOP-8L | 带记忆双通道调色温 |
| ICL9104AP | 开关调光 | 85V-265V | 280mA | SOP-8L | 带记忆双通道调色温 |
