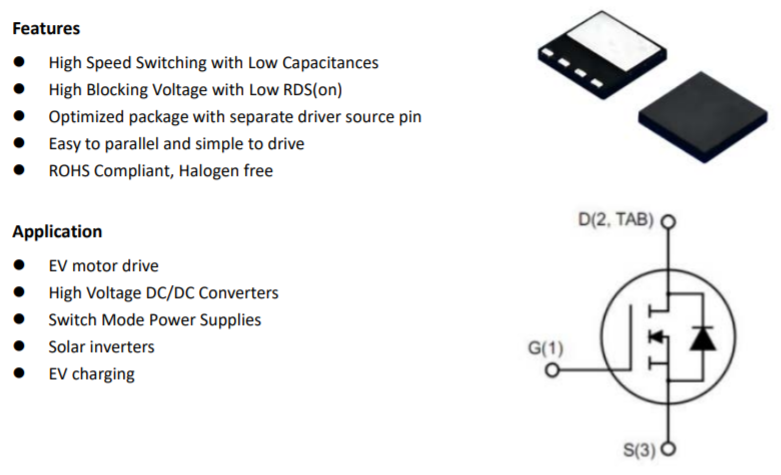

ASR90N650MD88PB,国产SiC碳化硅MOS管 650V 25A 车规级 PDFN8*8
产品描述：
碳化硅(SiC) MOSFET使用一种全新技术，与硅相比，该技术提供了卓越的开关性能和更高的可靠性。此外，低导通电阻和紧凑的芯片尺寸确保了低电容和栅极电荷。因此，系统优势包括最高效率、更快的工作频率、更高的功率密度、更低的EMI和更小的系统尺寸。
Model Name | R(on) | Current | Vgs | Package | Status |
| ASC100N650MT3 | 12mohm | 100A | 18V | TO-247-3 | Product |
| ASC100N650MT4 | 12mohm | 100A | 18V | TO-247-4 | Product |
| ASC100N650MT4PB | 12mohm | 100A | 15V | TO-247-4 | Product |
| ASR12N650MD02 | 12mohm | 100A | 18V | TOLL | Product |
| ASR35N650MD02 | 35mohm | 60A | 18V | TOLL | Product |
| ASR35N650MD88 | 35mohm | 60A | 18V | PDFN8*8 | Product |
| ASC60N650MT3 | 38mohm | 60A | 18V | TO-247-3 | Product |
| ASC60N650MT4 | 38mohm | 60A | 18V | TO-247-4 | Product |
| ASC60N650MT7 | 38mohm | 60A | 18V | TO-263-7 | Product |
| ASC30N650MF3 | 60mohm | 30A | 18V | TO-220F | Product |
| ASC30N650MT3 | 60mohm | 30A | 18V | TO-247-3 | Product |
| ASC30N650MT4 | 60mohm | 30A | 18V | TO-247-4 | Product |
| ASC30N650MT4PB | 60mohm | 30A | 15V | TO-247-4 | Product |
| ASR60N650MD88 | 60mohm | 30A | 18V | PDFN8*8 | Product |

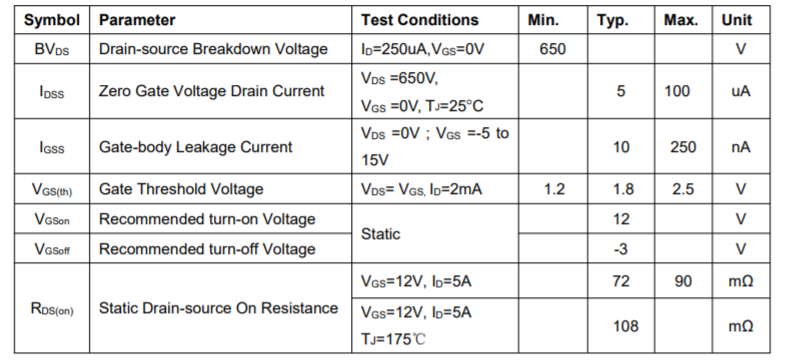

| ASR90N650MD88PB | 90mohm | 25A | 12V | TDFN8*8 | Product |
| ASR320N650MD56 | 320mohm | 8A | 12V | PDFN5*6 | Product |
| ASR320N650MD88 | 320mohm | 8A | 12V | PDFN8*8 | Product |
